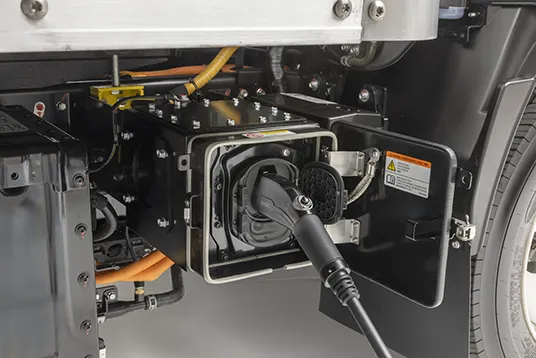

CHARGING PORTS
For ease of charging, all NRR EV models are equipped with charging ports that accommodate the most popular charging connectors in the U.S.:
- DC charging (CCS1)
- AC charging (J1772)

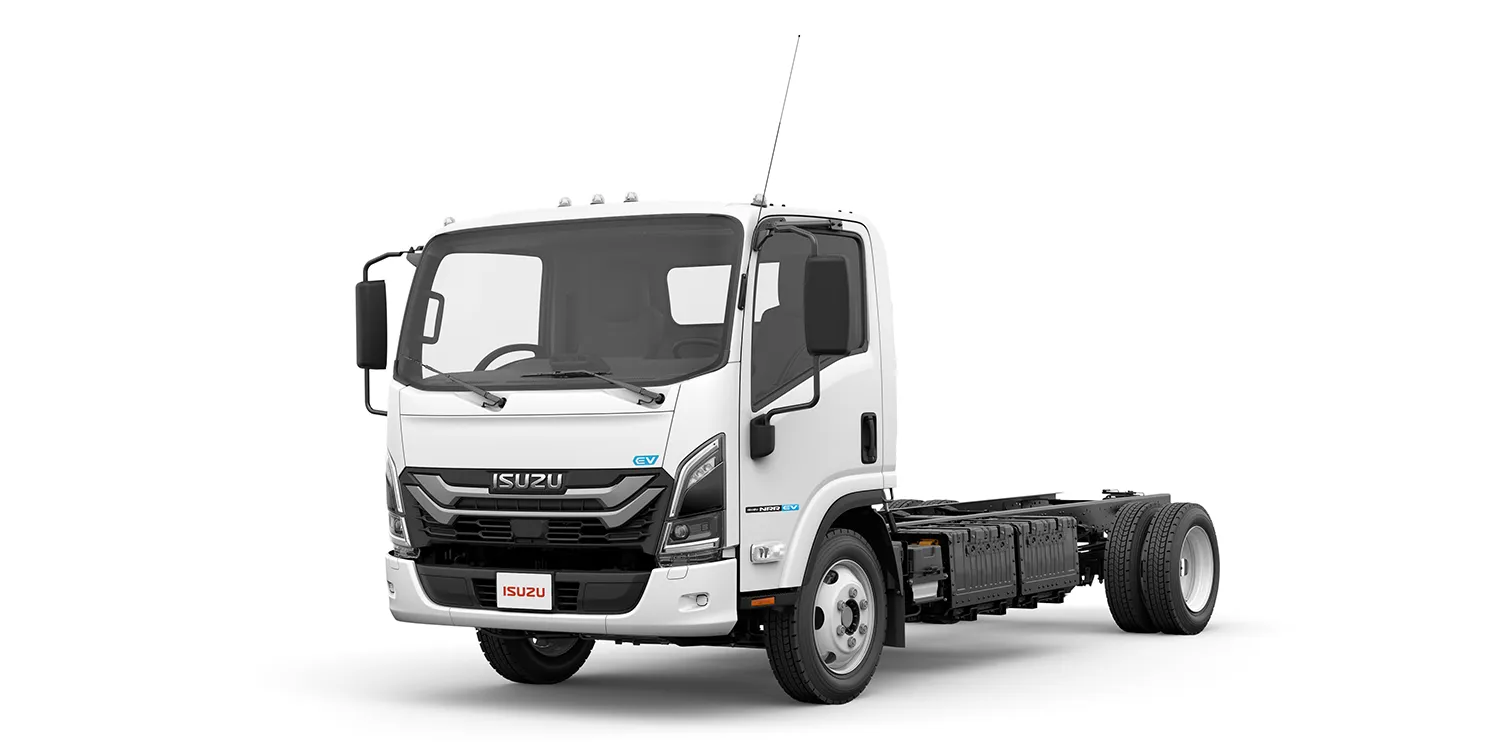

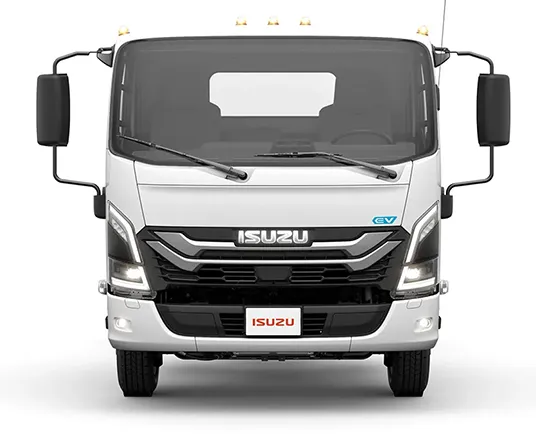

“CROSS FLOW” DESIGN
The NRR EV will speak the new global Isuzu brand design language, “Cross Flow.” Designers worked to create a look that would cheat the wind while maintaining an unmistakable Isuzu identity.
- A more aerodynamic cab is quieter and more efficient, and this is the quietest, most efficient Isuzu cab ever.
- The striking new grille continues the “smile” theme of previous generations while directing the flow of air around the sides of the cab.
NEW HEADLAMP DESIGN
The all-new headlamp assembly employs LED clearance lights, turn signals, high and low beams and side marker lights. LED lights are brighter, longer lasting and more energy efficient than halogen bulbs.
This new lamp design also provides a larger lighted area to provide better visibility of more of the road ahead.
GROSS VEHICLE WEIGHT RATINGS (GVWR)
Just like its gas and diesel counterparts, the NRR EV has a a full 19,500-pound gross vehicle weight rating to handle your tough Class 5 demands. It also has wheelbases ranging from 132.5 to 176 inches to accommodate the right body for your vocation.
NEW FRONT BUMPER
The newly designed front bumper improves cooling performance and is made up of three separate pieces to help reduce any future repair costs.

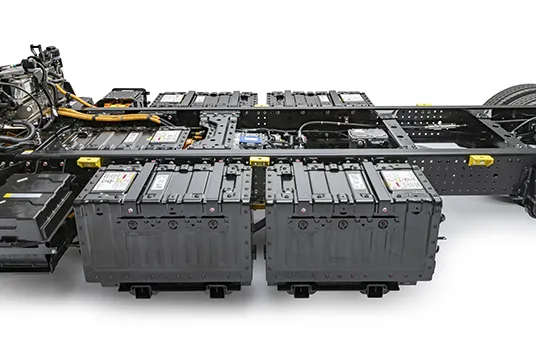

BATTERIES
Every NRR EV is powered by a number of 20 kilowatt-hour, lithium-ion battery packs. For ease of charging, all NRR EV models are equipped with charging ports that accommodate the most popular charging connectors in the U.S.:
- DC charging (CCS1)
- AC charging (J1772)
To accommodate their multiple battery packs and to provide reasonable charging times, NRR EV trucks, with battery capacities of 60, 100,140, and 180 kWh, have an AC charging time range from 5.5 to 10 hours and a DC charging time range from 1 to 2.5 hours.
Specifications
Standard Cab
19,500 lb.
Up to 20ft
9,882 - 12,951 lb.
Max Power / Torque Output 280 lb-ft.
Battery Configuration
| # Battery Packs |
Battery Capacity (kWh) |
Wheelbase (in.) |
Range (mi.)* |
|---|---|---|---|
| 3 | 60 | 132.5 | 41-80 |
| 150 | |||
| 176 | |||
| 5 | 100 | 132.5 | 68-130 |
| 150 | |||
| 176 | |||
| 7 | 140 | 176 | 95-180 |
| 9 | 180 | 176 | 122-235 |

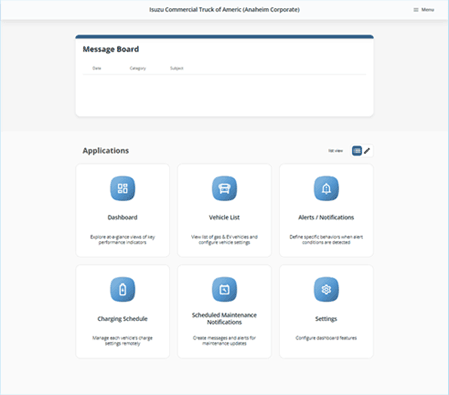

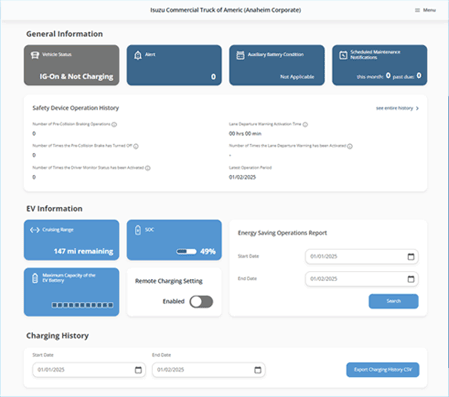

Gasoline- and diesel-powered vehicles allow owners and operators to detect signs of failure from operating sounds and smells. Not so with electric vehicles. But thanks to our exclusive Isuzu360™ telematics service, it’s possible to understand the NRR EV’s vehicle status and manage charging plans remotely—on your personal computer.

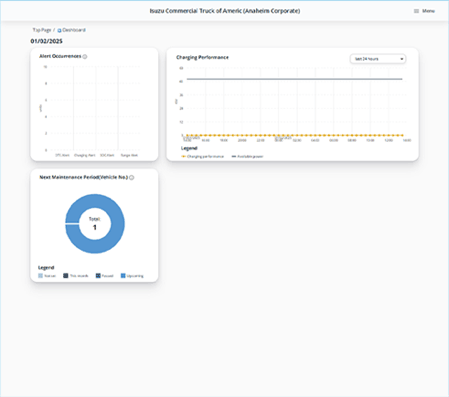

Isuzu360 allows you to monitor—from a distance—the status of every NRR EV in your fleet, including:
- Cruising distance
- Battery level (state of charge)
- Charging status
- Charging history
Isuzu360 provides you access to generate EV reports to meet the requirements of some incentive programs.
Isuzu360 is available at no extra charge on every NRR EV—and it includes all the advantages of Isuzu’s outstanding extended electric vehicle warranty coverage. Isuzu360 is your connection to peace of mind.
Consult your authorized Isuzu dealer about the benefits of Isuzu360 and how to incorporate it into the purchase of your next Isuzu NRR EV.
N-SERIES EV LIMITED WARRANTY
| New Truck Warranty | Standard | With Isuzu360 Registration | ||
|---|---|---|---|---|
| Years | Miles | Years | Miles | |
| Basic | 3 | Unlimited | 5 | Unlimited |
|
Li-Ion Battery 60 kWh 100 kWh 140 kWh 180 kWh |
3 | 58,000 69,000 81,000 92,000 |
8 | 155,000 185,000 215,000 245,000 |
| EV Powertrain Components | 3 | 50,000 | 8 | 130,000 |
| Drivetrain | 3 | Unlimited | 3 | Unlimited |
| Frame Rails | 3 5* |
Unlimited | 3 5* |
Unlimited |
| Corrosion - Rust Through | 4 | Unlimited | 4 | Unlimited |
| Greenhouse Gas | 5 | 50,000 | 5 | 50,000 |
| Tire | 2 | 24,000 | 2 | 24,000 |
| Tire Pressure Monitoring System | 5 | 50,000 | 5 | 50,000 |
* After 3 years, labor and parts coverage is 50% for up to 5 years.
With optional Isuzu360 Registration, all recommended scheduled maintenance is covered for up to five years/100,000 miles, or whichever occurs first, at no additional charge. See your authorized Isuzu dealer for details.
The warranty coverages are determined by the mileage of the vehicle and the number of years from the delivery date. The warranty coverages are limited by whichever occurs first. Please see your authorized Isuzu dealer for warranty details.
Interior Motives
Behind the Wheel
-

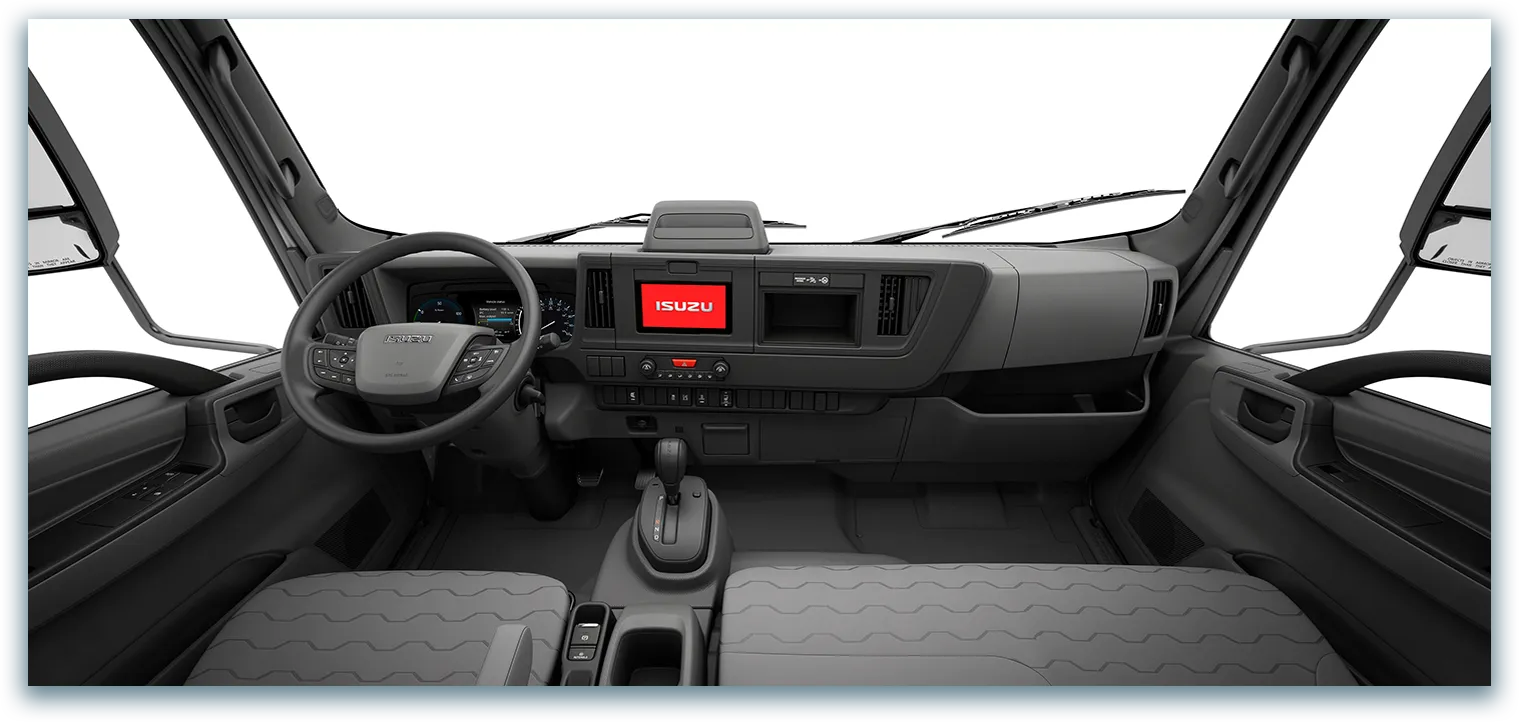

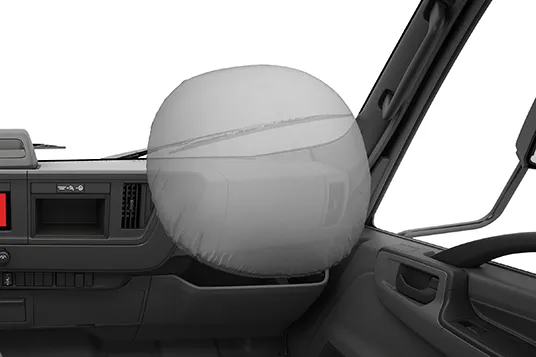

Big-League Safety. Now, driver and outboard
passenger frontal airbags are standard on every Isuzu NRR EV. Remember, airbags are supplemental protection and are designed to
work in combination with seatbelts.
-

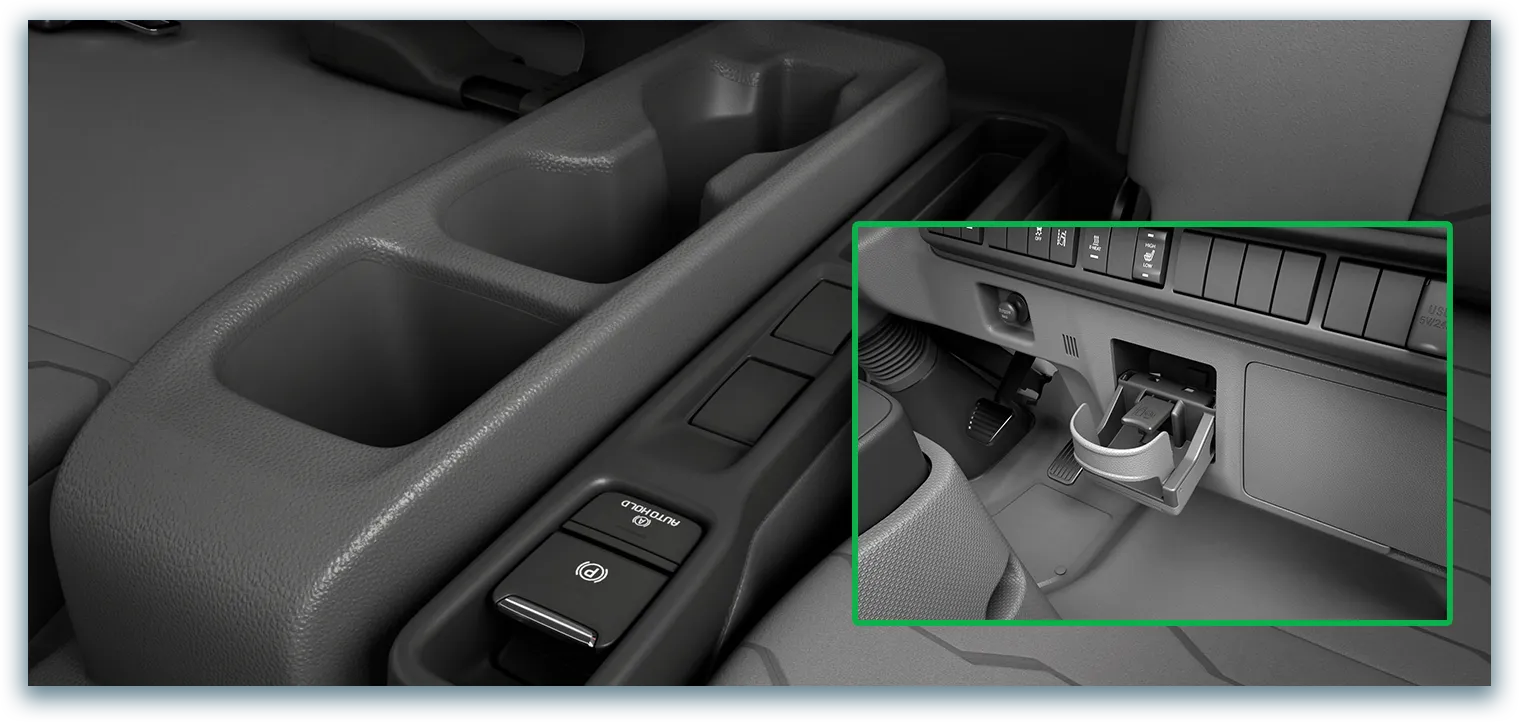

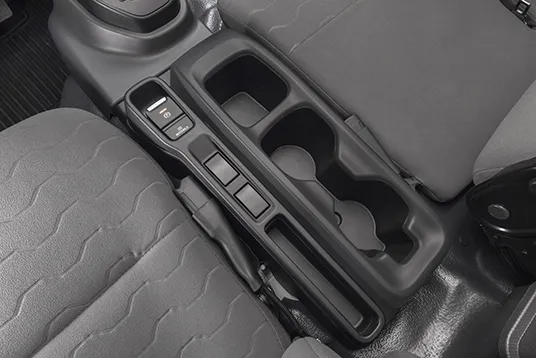

Stay Hydrated. It’s easy, because the NRR EV features a total of four cupholders.
-

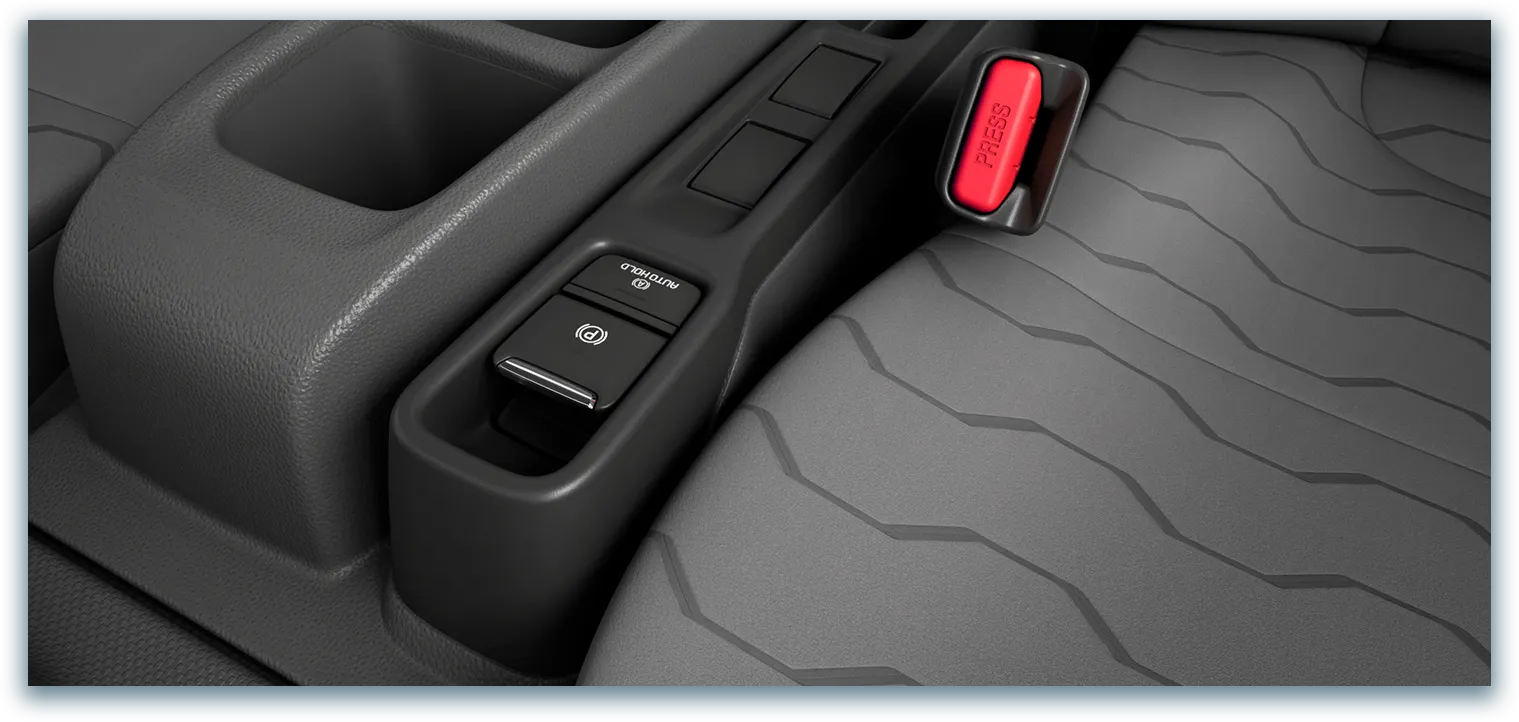

Electronic Parking Brake. Fully engage the parking brake with a simple button activation.
-

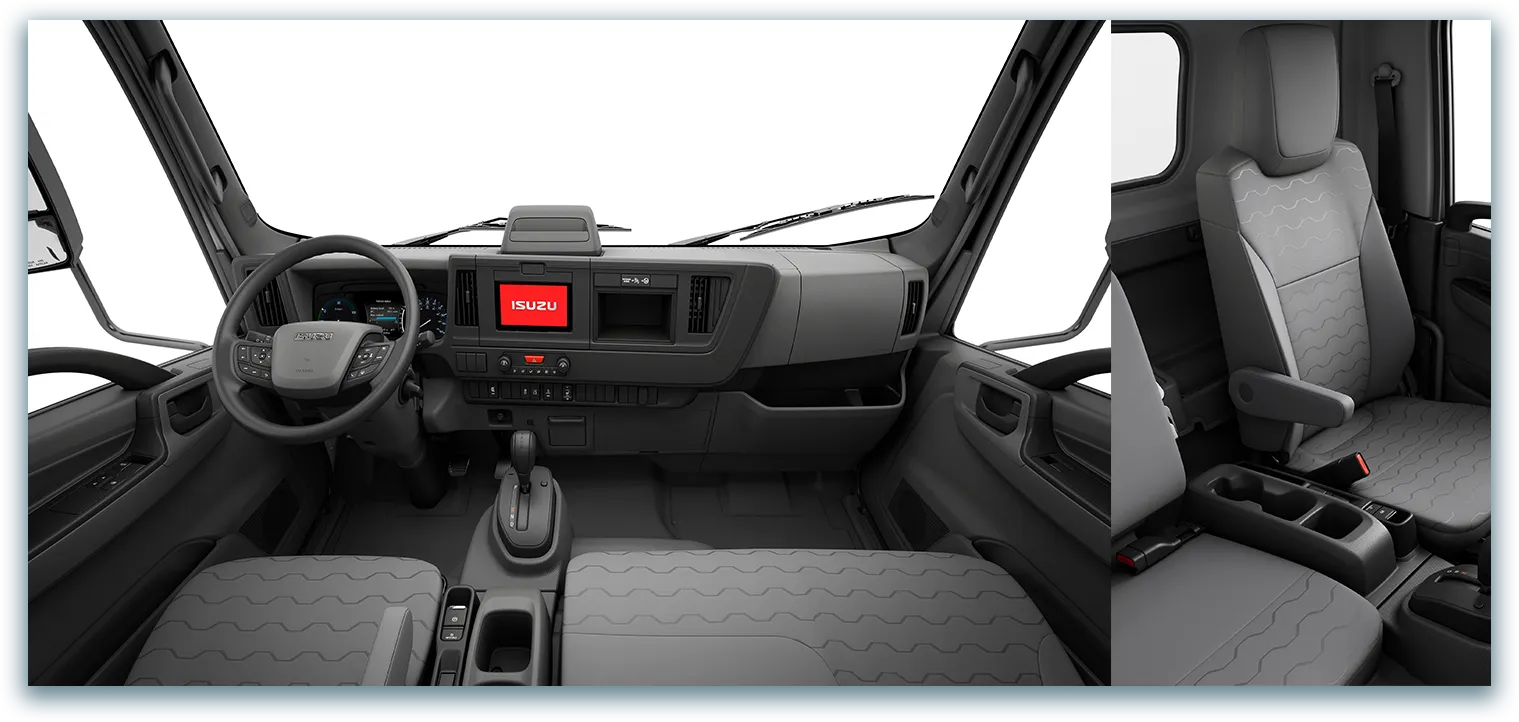

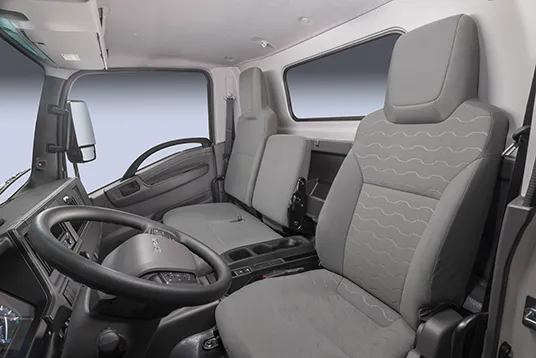

Please Be Seated. The NRR EV offers three-across seating, and all three adults will be comfortable, thanks to new urethane seat cushions and new upholstery. In addition, the driver’s seat back is 30 millimeters higher than prior N-Series seats to accommodate taller drivers, while the driver and outboard passenger’s hip points have been lowered 10 millimeters for a better seating position. And to top it all off—the driver’s seat even features an arm rest.
-

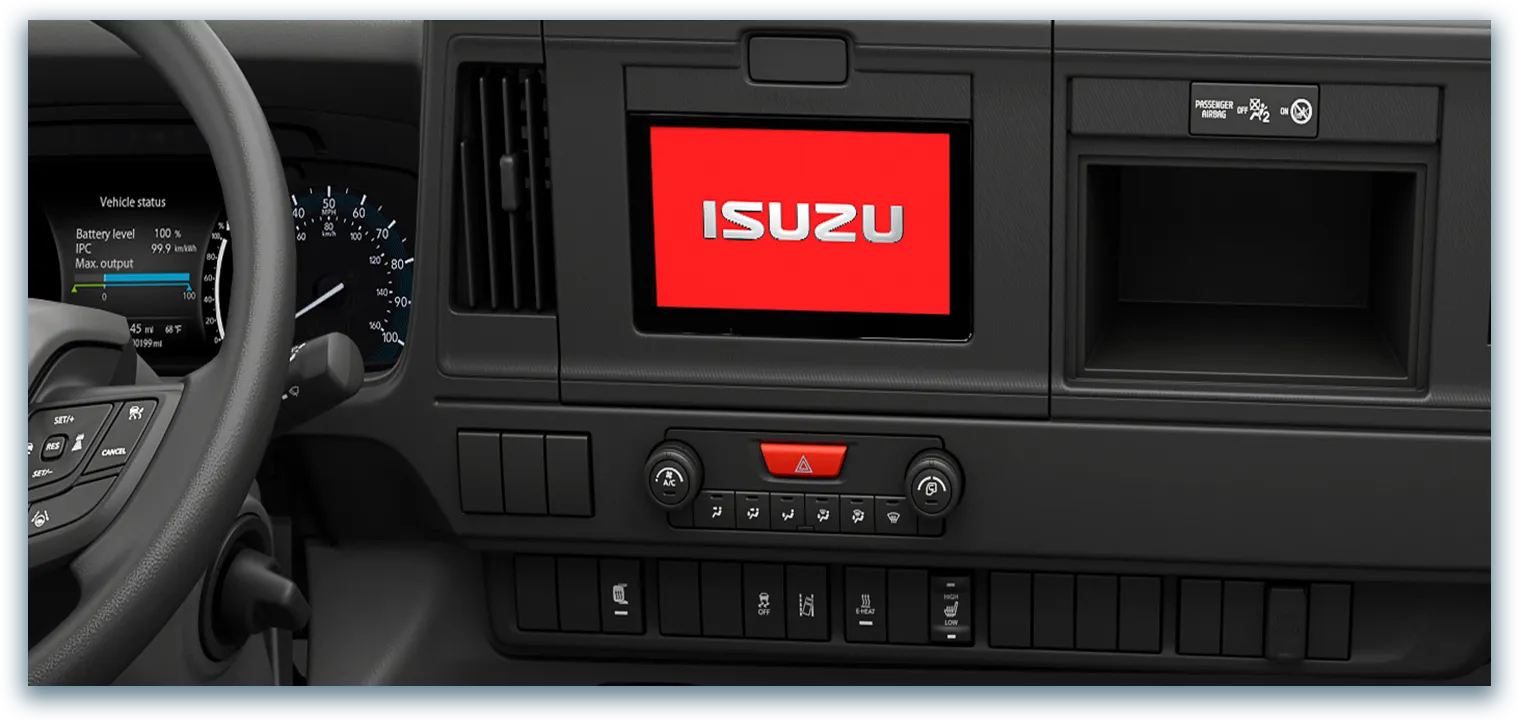

Climate Change That You’ll Appreciate. Climate controls in the new NRR EV are built into the instrument panel and, more importantly, adopt a new electric control that makes operation easy and intuitive. And when the climate on the outside turns wet, drivers will appreciate the new variable intermittent windshield wipers.
-
New Auto Light Sensor. An illuminance sensor mounted on the left front of the cabin detects the level of brightness outside the truck. When the sensor detects a light level lower than its threshold, the headlamps will automatically illuminate—along with the clearance, license plate, marker, daytime running lights and taillights. With the light control switch in the “Auto” position, you won’t have to worry about a driver forgetting to turn the lamps on again.
-

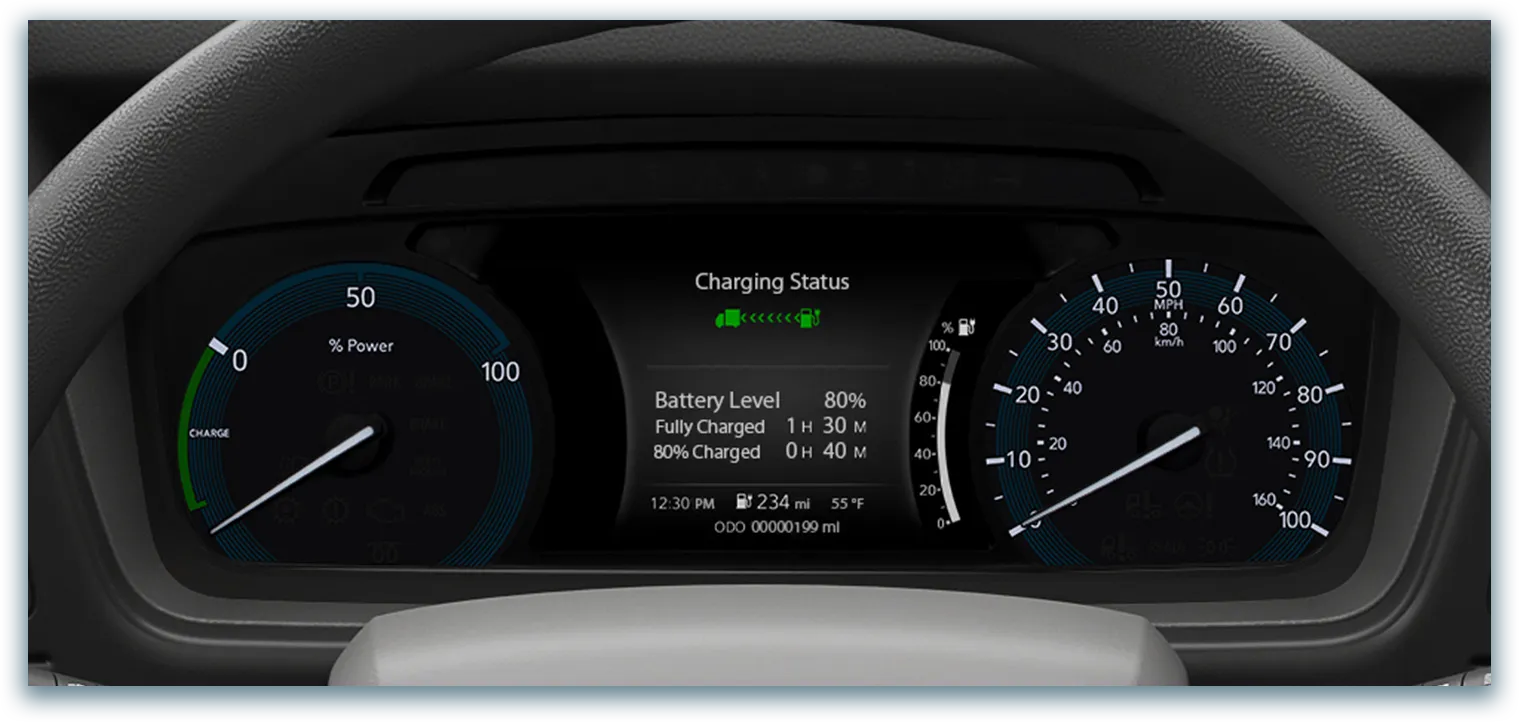

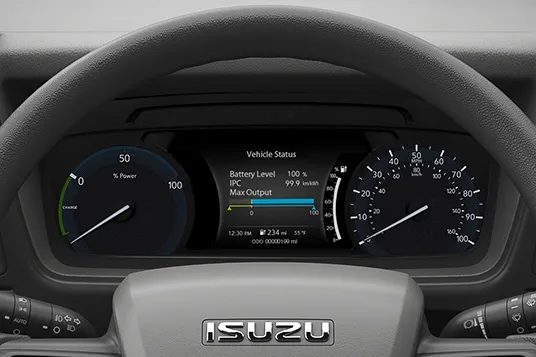

Putting the “multi” in Multi-Information Display. A new seven-inch color MID is standard equipment on every NRR EV, and it houses a remarkable assortment of gauges and functions, including warning lights; status of driver-assistance features; time and temperature; odometer; fuel level; shift position and so much more. And it’s not just multi-information—it’s multi-lingual, fluent in English, French and Spanish.
Advanced Driver
Assistance System
| Advanced Driver Assistance System Safety Package | |
|---|---|
| Lane Departure Warning System (LDWS) | Automatic Emergency Braking System (AEBS) |
|
|
| Following Distance Warning | Forward Vehicle Start Notification |
|
|
| Mis-Acceleration Mitigation | Full-Range Adaptive Cruise Control |
|
|
