N-Series Diesel Specs

NPR-HD diesel
NPR-HD

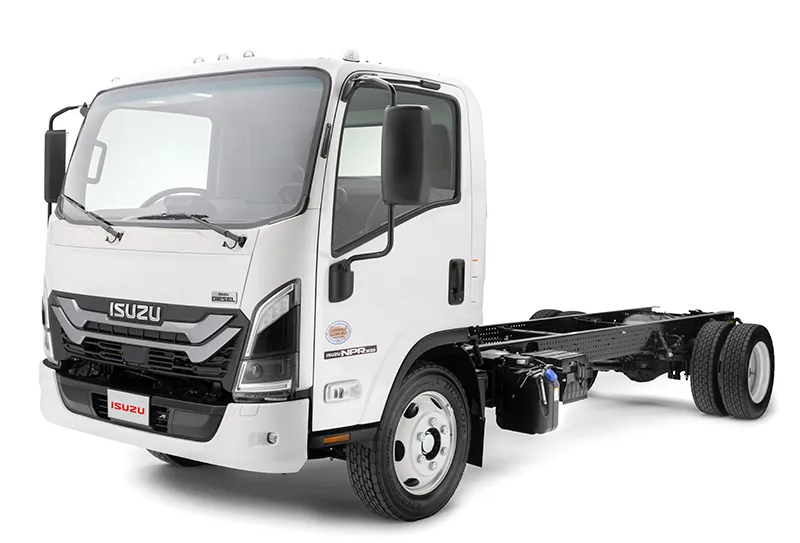

Class 4 		NPR-XD diesel
NPR-XD

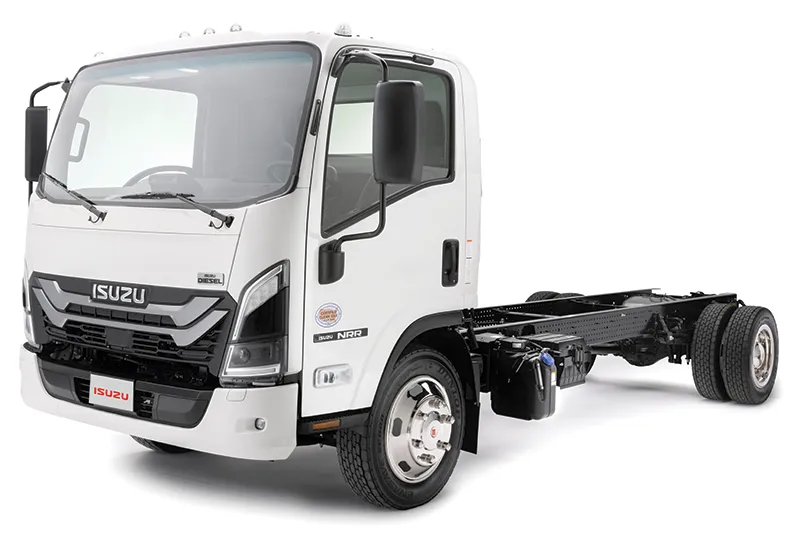

Class 4 		NRR Derate diesel
NRR Derate
Class 5 		NRR diesel
NRR
Class 5
Highlights
Class 4 4 5 5
GVWR 14,500 lbs. 16,000 lbs. 17,950 lbs. 19,500 lbs.
GCWR 20,500 lbs. 22,000 lbs. 23,950 lbs. 25,500 lbs.
Powertrain Isuzu 4HK1-TC
5.2L (317 cu. in.)
215-hp @ 2,500 rpm
452 lb.-ft. @ 1,850 rpm 		Isuzu 4HK1-TC
5.2L (317 cu. in.)
215-hp @ 2,500 rpm
452 lb.-ft. @ 1,850 rpm 		Isuzu 4HK1-TC
5.2L (317 cu. in.)
215-hp @ 2,500 rpm
452 lb.-ft. @ 1,850 rpm 		Isuzu 4HK1-TC
5.2L (317 cu. in.)
215-hp @ 2,500 rpm
452 lb.-ft. @ 1,850 rpm
Transmission Aisin A465id 6-speed auto. w/double overdrive and lock-up 2nd-6th gears Aisin A465id 6-speed auto. w/double overdrive and lock-up 2nd-6th gears Aisin A465id 6-speed auto. w/double overdrive and lock-up 2nd-6th gears Aisin A465id 6-speed auto. w/double overdrive and lock-up 2nd-6th gears
Body Payloads
Standard Cab 8,470 lbs. 9,576 lbs. 11,420 lbs. 12,970 lbs.
Crew Cab 7,725 lbs. 8,831 lbs. 10,659 lbs. 12,209 lbs.
Chassis
Body Lengths
Standard Cab 10 to 20 ft. 10 to 20 ft. 10 to 22 ft. 10 to 24 ft.
Crew Cab 12 to 16 ft. 12 to 16 ft.' 12 to 16 ft. 12 to 16 ft.
GAWR (Front/Rear) 5,360 lbs. / 9,880 lbs. 6,630 lbs. / 11,020 lbs. 6,830 lbs. / 12,980 lbs. 7,275 lbs / 13,660 lbs.
Axle Capacity (Front/Rear) 6,830 lbs. / 11,020 lbs. 6,830 lbs. / 11,020 lbs. 7,275 lbs. / 14,550 lbs. 7,275 lbs. / 14,550 lbs.
Rear Axle Ratio 4.556 4.777 5.571 5.571
Frame
Standard Cab Ladder type channel section straight frame rail 33.5 in. wide through the total length of the frame. Yield strength 54,800 psi section modulus 6.65 cubic in, RBM 364,420 lb.-in per rail.
Crew Cab Ladder type channel section straight frame rail 33.5 in wide through the total length of the frame. Yield strength of 54,800 psi, section modulus 11.87 cubic in, RBM 576,350 lb.-in per rail.
Fuel Tank (Standard) 30-gal. in-frame 30-gal. in-frame 30-gal. in-frame 30-gal. in-frame
Batteries 2 Maintenance-Free Group 31 750-CCA 2 Maintenance-Free Group 31 750-CCA 2 Maintenance-Free Group 31 750-CCA 2 Maintenance-Free Group 31 750-CCA
Alternator 140-amp 140-amp 140-amp 140-amp
Brakes, Suspension & Tires
Brakes
Service Vacuum+Power Assist/ Hydraulic with 4-Channel ABS/Front and Rear Disc Vacuum+Power Assist/ Hydraulic with 4-Channel ABS/Front and Rear Disc Vacuum+Power Assist/ Hydraulic with 4-Channel ABS/Front and Rear Disc Vacuum+Power Assist/ Hydraulic with 4-Channel ABS/Front and Rear Disc
Exhaust Standard Standard Standard Standard
Suspension (Front/Rear)
Type Tapered/Multi-Leaf Tapered/Multi-Leaf Tapered/Multi-Leaf Tapered/Multi-Leaf
Capacity 6,830 lbs. / 9,880 lbs. 8,440 lbs. / 14,308 lbs./td> 8,440 lbs. / 14,550 lbs. 8,440 lbs. / 14,550 lbs.
Tires LRR (Low Rolling Resistance) 215/85R-16E (10-PR) Tires 225/70R-19.5F/G (12-PR) Tires 225/70R-19.5F/G (12-PR) Tires 225/70R-19.5F/G (12-PR) Tires
Tire Pressure Monitoring System (TPMS) Standard Standard Standard Standard
Weights & Capacities*
Standard Cab Wheelbase (in) Curb Weight Body Payload Curb Weight Body Payload Curb Weight Body Payload Curb Weight Body Payload
109 6,030 lbs. 8,470 lbs. 6,424 lbs. 9,576 lbs. 6,530 lbs. 11,420 lbs. 6,530 lbs. 12,970 lbs.
132.5 6,100 lbs. 8,400 lbs. 6,497 lbs. 9,503 lbs. 6,612 lbs. 11,338 lbs. 6,612 lbs. 12,868 lbs.
150 6,133 lbs. 8,367 lbs. 6,528 lbs. 9,472 lbs. 6,632 lbs. 11,318 lbs. 6,632 lbs. 12,868 lbs.
176 6,173 lbs. 8,327 lbs. 6,570 lbs. 9,430 lbs. 6,679 lbs. 11,271 lbs. 6,679 lbs. 12,821 lbs.
200 N/A N/A N/A N/A 6,981 lbs. 10,969 lbs. 6,981 lbs. 10,969 lbs.
212 N/A N/A N/A N/A N/A N/A 7,027 lbs. 12,473 lbs.
Crew Cab Wheelbase (in) Curb Weight Body Payload Curb Weight Body Payload Curb Weight Body Payload Curb Weight Body Payload
150 6,724 lbs. 7,776 lbs. 7,121 lbs. 8,879 lbs. 7,240 lbs. 10,710 lbs. 7,240 lbs. 12,260 lbs.
176 6,775 lbs. 7,725 lbs. 7,169 lbs. 8,831 lbs. 7,291 lbs. 10,659 lbs. 7,291 lbs. 12,209 lbs.
Dimensions

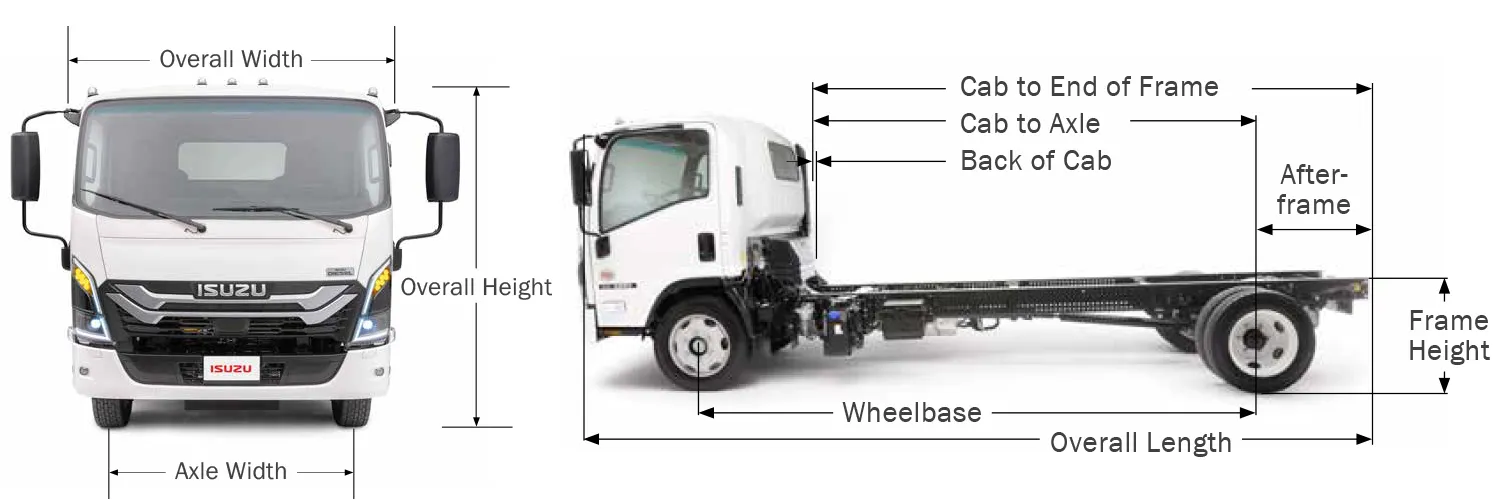

Measurements
Standard cab
Standard Cab		 Crew Cab

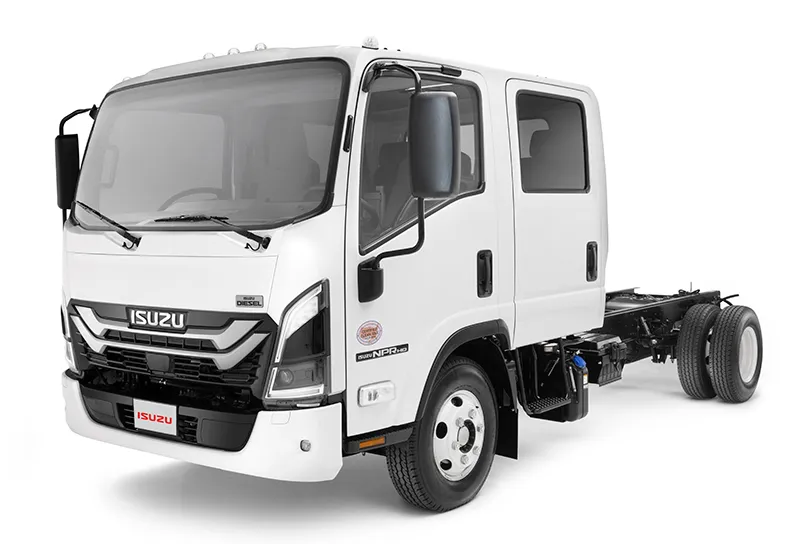

Crew Cab
109 in. Wheelbase
Cab to Axle 86.5 in. N/A
Cab to End of Frame 129.6 in. N/A
Back of Cab 7.7 in. N/A
Overall Length 195.7 in. N/A
Overall Height** 92.9 in. N/A
Overall Width 81.3 in. N/A
Axle Width 65.6 in. N/A
Afterframe 43.1 in. N/A
Frame Height†† 33.5 in. N/A
Frame Rail Width 33.5 in. N/A.
Body Length 10 - 12 ft. N/A
132.5 in. Wheelbase
Cab to Axle 110 in. N/A
Cab to End of Frame 153.1 in. N/A
Back of Cab 7.7 in. N/A
Overall Length 219.2 in. N/A
Overall Height** 92.9 in. N/A
Overall Width 81.3 in. N/A
Axle Width 65.6 in. N/A
Afterframe 43.1 in. N/A
Frame Height†† 33.5 in. N/A
Frame Rail Width 33.5 in. N/A.
Body Length 12 - 14 ft. N/A
150 in. Wheelbase
Cab to Axle 127.5 in. 88.5 in.
Cab to End of Frame 170.6 in. 131.6 in.
Back of Cab 7.7 in. 5.3 in.
Overall Length 236.7 in. 236.7 in.
Overall Height** 92.9 in. 92.4 in.
Overall Width 81.3 in. 81.3 in.
Axle Width 65.6 in. 65.6 in.
Afterframe 43.1 in. 43.1 in.
Frame Height†† 33.5 in. 33.5 in.
Frame Rail Width 33.5 in. 33.5 in.
Body Length 16 - 18 ft. 12 ft.
176 in. Wheelbase
Cab to Axle 153.5 in. 114.5 in.
Cab to End of Frame 196.6 in. 157.6 in.
Back of Cab 7.7 in. 5.3 in.
Overall Length 262.7 in. 262.7 in.
Overall Height** 92.9 in. 92.9 in.
Overall Width 81.3 in. 81.3 in.
Axle Width 65.6 in. 65.6 in.
Afterframe 43.1 in. 43.1 in.
Frame Height†† 33.5 in. 33.5 in.
Frame Rail Width 33.5 in. 33.5 in.
Body Length 18 - 20 ft. 16 ft.
200 in. Wheelbase†
Cab to Axle 177.5 in. N/A
Cab to End of Frame 220.6 in. N/A
Back of Cab 7.7 in. N/A
Overall Length 286.7 in. N/A
Overall Height 92.9 in. N/A
Overall Width 81.3 in. N/A
Axle Width 65.6 in. 65.6 in.
Afterframe 43.1 in. N/A
Frame Height 33.5 in. N/A
Frame Rail Width 33.5 in. N/A
Body Length 22 ft. N/A
212 in. Wheelbase†
Cab to Axle 189.5 in. N/A
Cab to End of Frame 232.6 in. N/A
Back of Cab 7.7 in. N/A
Overall Length 298.7 in. N/A
Overall Height 92.9 in. N/A
Overall Width 81.3 in. N/A
Axle Width 65.6 in. 65.6 in.
Afterframe 43.1 in. N/A.
Frame Height 33.5 in. N/A
Frame Rail Width 33.5 in. N/A
Body Length 24 ft. N/A

†NRR only
††NPR-HD is 31.6 in.
**NPR-HD is 91.3 in. (Standard Cab), 90.5 in. (Crew Cab)
Safety
SRS Front Airbags Driver/passenger Driver/passenger Driver/passenger Driver/passenger
Advanced Driver Assistance System (ADAS) Optional
Lane Departure Warning System (LDWS) Operates at speeds of approximately 37 miles per hour and above
Recognizes the lines on road ahead to determine if vehicle strays too far from road’s center
Visual and audible alerts on MID (Multi-Information Display)
Two sensitivity levels
Automatic Emergency Braking System (AEBS) Monitors road ahead for obstacles such as pedestrians, cyclists, other vehicles
Warns the driver of such obstacles with visual and audible alerts on MID
If necessary, will automatically apply braking force to reduce vehicle speed
Operates at speeds of approximately 6 miles per hour or higher
Following Distance Warning Notifies driver when front of Isuzu truck is within a certain distance of vehicle ahead
Distance is adjustable by driver
Visual and audible alerts on MID
Forward Vehicle Start Notification From a stop, notifies driver when the vehicle in front of the Isuzu truck has moved forward a certain distance (at a traffic light or stop sign, for example)
Visual and audible alerts on MID
Mis-Acceleration Mitigation When starting from a stop and, an obstacle in front of the Isuzu truck is detected, engine output will be restricted if the accelerator is depressed more than necessary
Helps prevent or lessen the severity of accidents caused by mistaken accelerator pedal depression
Operates when Isuzu truck is parked or operating at 6 miles per hour or slower
Full-Range Adaptive Cruise Control Allows driver to set both a desired speed and a desired following distance from the vehicle ahead
If the vehicle ahead slows down, the system will automatically slow the Isuzu truck to maintain pre-set following distance
System will then accelerate the Isuzu truck to the originally set speed once vehicle ahead speeds up or the lane is clear
System can bring the Isuzu truck to a complete stop. If it does, the Isuzu truck will return to its originally set speed only after the driver depresses the accelerator.
Automatic Brake Hold (ABH) Optional Standard Standard Standard Standard
Warranty
Standard Years Miles Years Miles Years Miles Years Miles
Basic 3 Unlimited 3 Unlimited 3 Unlimited 3 Unlimited
Engine-Isuzu 3 Unlimited 3 Unlimited 3 Unlimited 3 Unlimited
Transmission - Aisin A465ID 3 Unlimited 3 Unlimited 3 Unlimited 3 Unlimited
Drivetrain 3 Unlimited 3 Unlimited 3 Unlimited 3 Unlimited
Frame Rails 3
5*		 Unlimited
Unlimited*		 3
5*		 Unlimited
Unlimited*		 3
5*		 Unlimited
Unlimited*		 3
5*		 Unlimited
Unlimited*
Corrosion (Rust Through) 4 Unlimited 4 Unlimited 4 Unlimited 4 Unlimited
Roadside Assistance 3
5†		 Unlimited
100,00†		 3
5†		 Unlimited
100,00†		 3
5†		 Unlimited
100,00†		 3
5†		 Unlimited
100,00†
Emission Defect
Emission Defect Warranty 5 110,000 5 110,000 5 110,000 5 110,000
GHG Emission 5 50,000 5 50,000 5 50,000 5 50,000
Tire 2 24,000 2 24,000 2 24,000 2 24,000
Tire Pressure Monitoring System 5 50,000 5 50,000 5 50,000 5 50,000
*After 3 years labor and parts coverage is 50% for up to 5 years.
†Tows related to emissions issues may be covered for up to 5 years or 100,000 miles (whichever occurs first).
The warranty coverages are determined by the mileage of the vehicle and the number of years from the delivery date. The warranty coverages are limited by whichever occurs first. Please see your authorized Isuzu dealer for warranty details.
